GLY 2
High pressure cooling and filtering device for CNC --G LY 2
Improve processing efficiency and reduce production costs
1. Efficient filtering method:
Adopting an efficient filtration device, the filter element can be repeatedly cleaned and used without consumables, reducing the frequency of downtime and replacement. The cleaning cycle is 60-150 days.
The filter screen is made by disassembling and stacking stainless steel fiberglass mesh, with a large filtration area and sufficient flow rate,
High filtration accuracy: 20-60 μm, sufficient to meet industrial filtration requirements, reduce the risk of pump suction and noise generation, improve the service life and performance of pump units, and achieve the function of cost reduction and efficiency improvement.
2. Compact structure, occupying less space

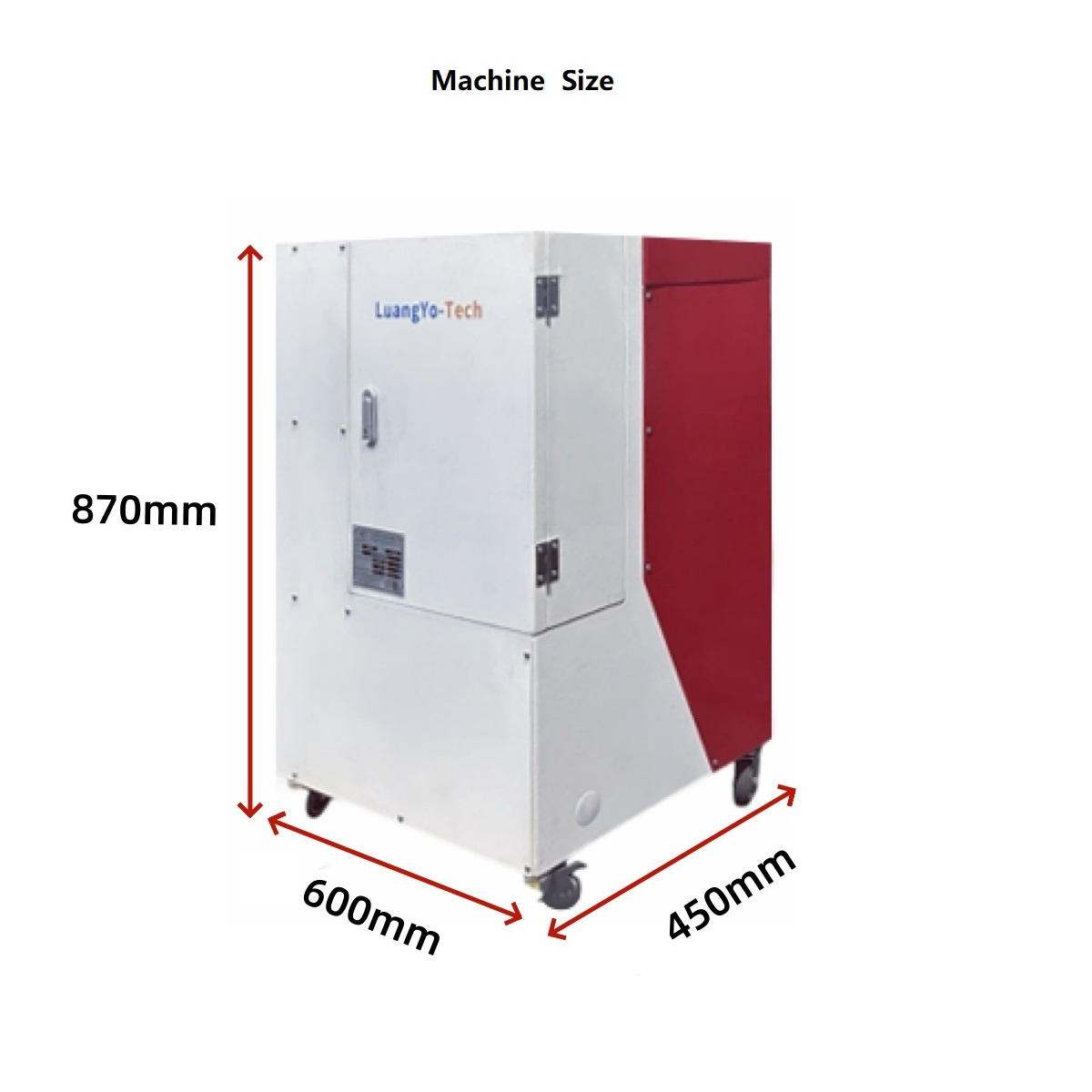

Equipment size: 600X450X870mm
Small space occupation, lightweight and easy to move, simple and convenient maintenance.
3. Flow interruption detection system
Using imported inspection components to accurately detect filtering blockages and air suction phenomena.
Flow interruption detection system:
Using imported Italian brand detection components, the filter blockage and suction phenomenon can be accurately detected. Information can be prompted on the machine tool system operation screen to indicate the function of cleaning the filter, prevent the risk of dry cutting of tools without coolant, and protect the normal operation and performance of the pump unit.
Resolve the current issue of human visual inspection to determine if coolant is present, and enhance intelligence and production efficiency!
4. Automatic pressure relief function for tool changing - improves the reliability and stability of tool tower tool changing, reduces tool changing failures and tool wear.
In the high-pressure system of GLY2 equipment, a pressure relief valve component is designed and interacts with the tool change instruction signal of the turret control system. The automatic pressure relief function of high-pressure coolant during rapid tool change of the turret spindle improves the reliability and stability of the turret tool change, avoids problems such as coolant splashing and noise during high-pressure tool change, and improves the machining environment.
High pressure cooling and filtering device for CNC --G LY 2
Improve processing efficiency and reduce production costs
1. Efficient filtering method:
Adopting an efficient filtration device, the filter element can be repeatedly cleaned and used without consumables, reducing the frequency of downtime and replacement. The cleaning cycle is 60-150 days.
The filter screen is made by disassembling and stacking stainless steel fiberglass mesh, with a large filtration area and sufficient flow rate,
High filtration accuracy: 20-60 μm, sufficient to meet industrial filtration requirements, reduce the risk of pump suction and noise generation, improve the service life and performance of pump units, and achieve the function of cost reduction and efficiency improvement.
2. Compact structure, occupying less space
Equipment size: 600X450X870mm
Small space occupation, lightweight and easy to move, simple and convenient maintenance.
3. Flow interruption detection system
Using imported inspection components to accurately detect filtering blockages and air suction phenomena.
Flow interruption detection system:
Using imported Italian brand detection components, the filter blockage and suction phenomenon can be accurately detected. Information can be prompted on the machine tool system operation screen to indicate the function of cleaning the filter, prevent the risk of dry cutting of tools without coolant, and protect the normal operation and performance of the pump unit.
Resolve the current issue of human visual inspection to determine if coolant is present, and enhance intelligence and production efficiency!
4. Automatic pressure relief function for tool changing - improves the reliability and stability of tool tower tool changing, reduces tool changing failures and tool wear.
In the high-pressure system of GLY2 equipment, a pressure relief valve component is designed and interacts with the tool change instruction signal of the turret control system. The automatic pressure relief function of high-pressure coolant during rapid tool change of the turret spindle improves the reliability and stability of the turret tool change, avoids problems such as coolant splashing and noise during high-pressure tool change, and improves the machining environment.
